Base Specifications

Axle Configuration

6x4 | 8x6

Engine

MP10

GCM

70 - 90 tonne *higher GCM ratings available upon application

GVM

up to 37.5 tonne

Horsepower

540, 600 or 685

Torque

2810Nm (2072 ft. lb) or 3180 Nm (2345 ft. lb)

Cab Configuration

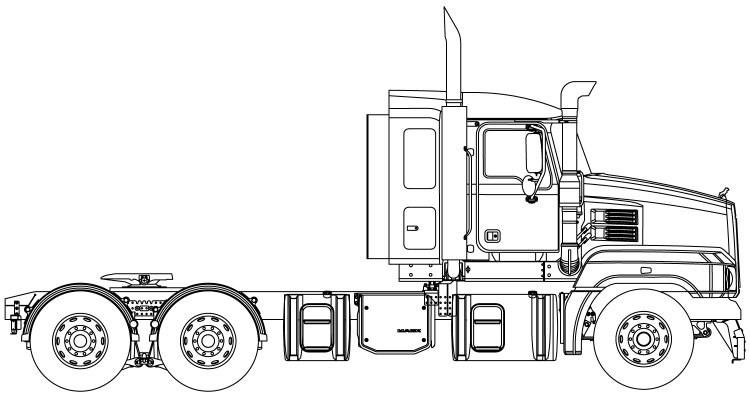

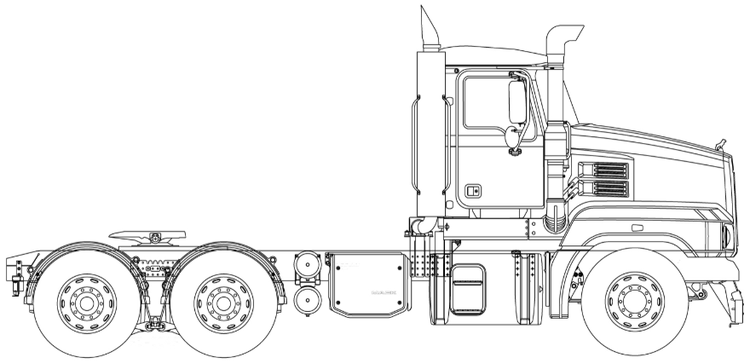

Day Cab

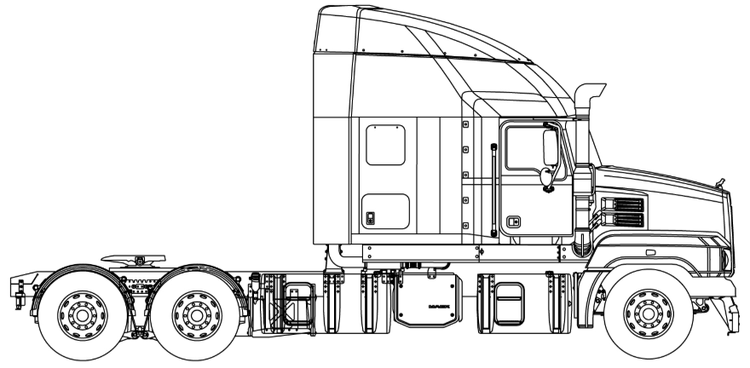

Supercab

28" Supercab

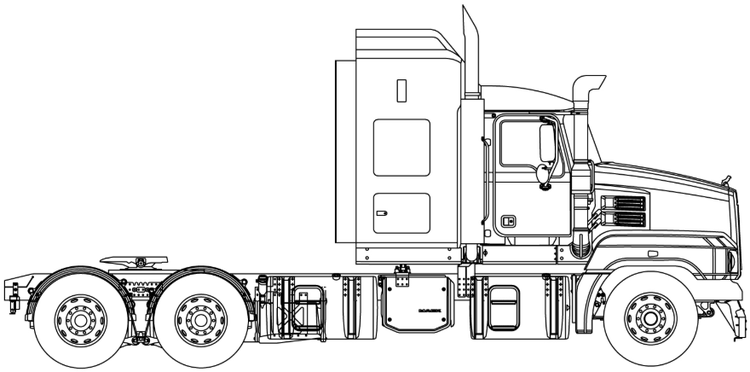

Mid-Rise

36” Mid-Rise

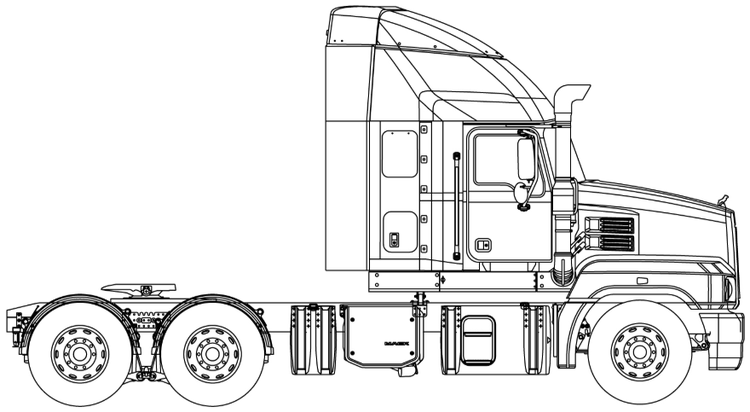

High-Rise

58" high-rise

Engines

MP10

  • 16L displacement
  • Euro 5 SCR (Selective Catalytic Reduction)

Transmissions

Automated Manual

m DRIVE™ HD & m DRIVE™ XHD

Axles

  • Mack 2610B*
  • Dana D52-190P
  • Meritor RT52-185GP

*Tri-Drive configuration options available upon request

Suspensions

  • Mack Air Ride
  • Mack Air Ride (Tri-Drive)
  • MIL-X
  • Neway AD260
  • Neway AD390 (Tri-Drive)

Standard Features

Exterior

  • Stainless bug screen integrated with grille
  • Heated ‘West Coast’ mirrors with stainless steel arms
  • LH and RH power mirrors
  • LH and RH 7” spotter mirrors

Interior

  • Premium Radio/CD player including Bluetooth iPod connector and USB connector
  • Central Locking available
  • Climate control
  • Cup Holders in dash
  • Door Storage (2 pockets)
  • Full gauge package
  • Interior Trim - pleated ultra leather or diamond plate
  • Internal grab handles
  • Overhead storage (up to 3 pockets based on cab configuration)
  • Power windows available
  • Rear Wall storage available (based on cab configuration)
  • Integrated seat belt with ISRI ‘Big-Boy’ air-ride Premium driver's seat
  • Bulldog soft touch rubber grip steering wheel

Optional Features

Bright finish bonnet hold down straps
Stainless steel exterior sunvisor
LED roof clearance and tail lamps
GME CB or UHF radio
Elite leather grip steering wheel
Matt black mesh windscreen stone guard
*Additional adaptations available upon request
